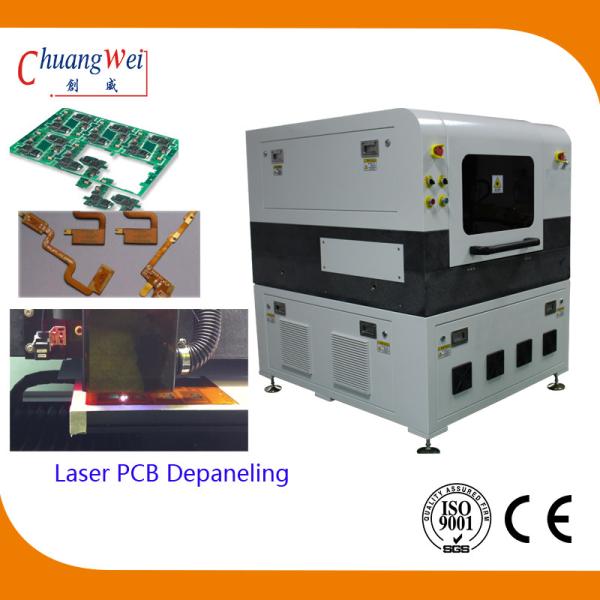

Stainless Steel Pcb UV Laser Depaneling Machine System Optional 110V / 220V

Brand Name : Chuangwei PCB Depaneling Machine

Model Number : CWVC-5L

Certification : CE ROHS

Place of Origin : China

MOQ : 1 Set

Payment Terms : T/T, Western Union, L/C

Supply Ability : 260 sets per month

Delivery Time : 1-3 work days

Packaging Details : each set be packed in plywood case

Price : Negotiable

Material : Stainless Steel

Laser : 10-17W

Voltage : 110V/220V

Machine dimension : 1480mm*1360mm*1412 mm

Machine weight : 1500kgs

Name : UV Laser Depaneling System

Contact Now

Stainless Steel Pcb UV Laser Depaneling Machine System Optional 110V / 220V

Stainless Steel Pcb UV Laser Depaneling Machine System Optional 110V / 220V

Advantages of Laser PCB depaneling/singulation

  • No mechanical stress on substrates or circuits
  • No tooling cost or consumables.
  • Versatility – ability to change applications by simply changing settings
  • Fiducial Recognition – more precise and clean cut
  • Optical Recognition before PCB depaneling/singulation process begins.
  • Ability to depanel virtually any substrate. (Rogers, FR4, ChemA, Teflon, ceramics, aluminum, brass, copper, etc)
  • Extraordinary cut quality holding tolerances as small as < 50 microns.
  • No design limitation – ability to cut virtually and size PCB board including complex contours and multidimensional boards

Specification

Parameter

Technical parameters

 Main body of laser 1480mm*1360mm*1412 mm
Weight of the 1500Kg
Power AC220 V
Laser 355 nm
Laser

Optowave 10W(US)
Material ≤1.2 mm
Precision ±20 μm
Platfor ±2 μm
Platform ±2 μm
Working area 600*450 mm
Maximum 3 KW
Vibrating CTI(US)
Power AC220 V
Diameter 20±5 μm
Ambient 20±2 ℃
Ambient ＜60 %
The Machine Marble
CE approval
Stainless Steel Pcb UV Laser Depaneling Machine System Optional 110V / 220V
Production flow
Stainless Steel Pcb UV Laser Depaneling Machine System Optional 110V / 220V
